Wednesday, March 24, 2010

Fiddler output for ELMAH

Fiddler is a great web debugger for web developers of any platform. ELMAH is great for error logging in ASP.NET apps. Both are practically must-have tools for any ASP.NET developer. So how about combining them to debug ASP.NET errors more easily?

Here's a module that sends a SAZ file attached to all ELMAH mails. If you're not familiar with Fiddler, SAZ stands for Session Archive Zip, it's basically a ZIP file containing raw HTTP request/responses. After installing this module, a sample ELMAH mail might look like this:


See the last attachment? It's our SAZ file, click on it to open it with Fiddler:


The SAZ is password-protected since the HTTP form might have sensitive information. Enter the password and you can see the request:

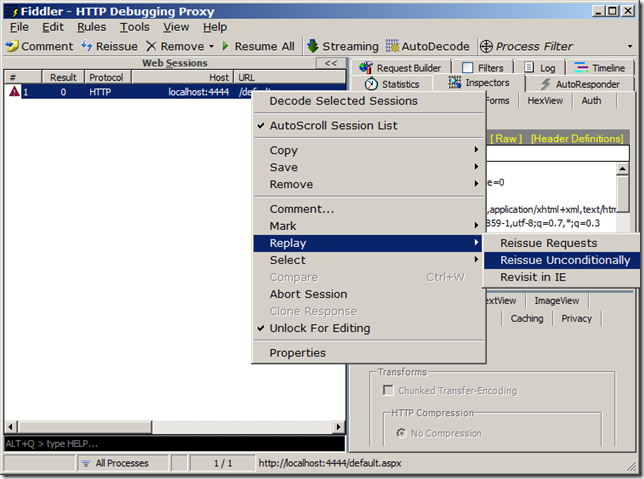

Now you can edit the request from Fiddler, change the host to your local instance of the website and then replay the request to reproduce the error:


Configuration is very easy: just register the ElmahMailSAZModule after ELMAH's ErrorMailModule. You can optionally supply a configuration, e.g.:

        <sectionGroup name="elmah">
            <section name="errorMail" requirePermission="false" type="Elmah.ErrorMailSectionHandler, Elmah"/>
            <section name="errorMailSAZ" requirePermission="false" type="ElmahFiddler.ElmahMailSAZModule, ElmahFiddler"/>
      subject="ERROR From Elmah:"
      password="pepe" />

This will apply the password "bla" to the SAZ files, and NOT create any SAZ for any requests that match (regex) "default" or "blabla". The latter is useful to prevent potentially huge SAZ files coming from requests with file uploads.


  • Requires async="false" on the mail module, since it needs access to the current HttpContext.
  • Does not include the HTTP response. This could be implemented using Response.Filter, but I'm not sure it's worth it.

I'm also playing with the idea of keeping a trace of all the requests in a user session, in order to reproduce more complex scenarios (SAZ files can accomodate multiple requests). This would place a considerable load on the server though, and the resulting SAZ file could get quite big.

Source code is here. It's a VS2010 / .NET 4.0 solution.

Kudos to Eric Lawrence for recently implementing SAZ support in FiddlerCore, without it this wouldn't be possible.

Friday, March 19, 2010

Proxying and parallelizing processes

Some code just flat out refuses to run multi-threaded. Like GeckoFX. It's a great project, and I found it to be much more reliable than WebBrowser (aka IE), but it just won't run multi-threaded (or at least me and several other people haven't figured out how)

I had to write some CPU-intensive, non-interactive code involving GeckoFX, so parallelization was a must. Well, when multi-threading won't fly, multi-processing (as in launching code on a separate process instead of a separate thread) can be a viable alternative. This does complicate RPC a bit but we can tuck this under a proxy that serializes parameters and then gets the return value through a named pipe:

public class ProcessInterceptor : IInterceptor {

    public void Intercept(IInvocation invocation) {
        var pipename = Guid.NewGuid().ToString();
        var procArgs = new List<string> {
        procArgs.AddRange(invocation.Arguments.Select(a => Serialize(a)));
        var proc = new Process {
            StartInfo = {
                FileName = "runner.exe",
                Arguments = String.Join(" ", procArgs.ToArray()),
                UseShellExecute = false,
                CreateNoWindow = true,
        using (var pipe = new NamedPipeServerStream(pipename, PipeDirection.In)) {
            var r = bf.Deserialize(pipe);
            r = r.GetType().GetProperty("Value").GetValue(r, null);
            if (proc.ExitCode == 0) {
                invocation.ReturnValue = r;
            } else {
                var ex = (Exception) r;
                throw new Exception("Error in external process", ex);

And that "runner.exe" thing is the host, just a console app that is responsible for deserializing parameters, calling the method, managing exceptions and then send back the return value (if any):

public class Runner {
    public static int Main(string[] args) {
        var pipename = args[2];
        using (var pipe = new NamedPipeClientStream(".", pipename, PipeDirection.Out)) {
            try {
                var type = Type.GetType(args[0]);
                var method = type.GetMethod(args[1]);
                var instance = Activator.CreateInstance(type);
                var parameters = args.Skip(3).Select(p => lf.Deserialize(p)).ToArray();
                var returnValue = method.Invoke(instance, parameters);
                bf.Serialize(pipe, new Result { Value = returnValue });
                return 0;
            } catch (Exception e) {
                bf.Serialize(pipe, new Result { Value = e });
                return 1;

And now we can parallelize. Here's a silly example (can't post the actual GeckoFX process, it's proprietary stuff):

public class TargetCode {
    public virtual int Add(int a, int b) {
        return a + b;

public void Parallel() {
    var generator = new ProxyGenerator();
    var t = generator.CreateClassProxy<TargetCode>(new ProcessInterceptor());
    var r = Enumerable.Range(0, 100).AsParallel().Sum(i => t.Add(i, i));
    Assert.AreEqual(9900, r);

This will launch a separate process for each iteration. On a dual-core CPU, the Task Parallel Library will launch by default at most two threads to run in parallel, so you would have at most two runner.exe instances running at the same time, thus achieving multi-process parallelism.

Now this is not a general solution, it worked for my specific usecase but it has several caveats:

  • Doesn't support generic or overloaded methods (it shouldn't be hard to implement)
  • Target code must be interceptable (virtual, non-sealed, etc)
  • Target code must have parameterless constructor (it shouldn't be hard to lift this restriction)
  • Method parameters are passed through command-line so they can't be very long. (it shouldn't be hard to lift this restriction)
  • Target code should be practically stand-alone since the host won't have the same app.config as it parent, nor any other previous initialization, etc.
  • The target code should be sufficiently long-running to justify the overhead of proxying, reflection, serialization and process launching.

Full code is here.

Friday, March 12, 2010

Low-level SolrNet

I recently got a question about how to handle multi-faceting in SolrNet, a nice feature of Solr that can be very useful to the end-user. eBay uses a kind of multi-faceting interface.
If you know nothing about Solr or SolrNet, read on, this article isn't so much about Solr as API design.

The Solr wiki has an example query with multi-faceting:


For those of you that are not into Solr, this is just a regular URL query string that is passed to the Solr endpoint. The final URL looks like this (modulo encoding):


And this is how you represent this query in the SolrNet object model:

var solr = ServiceLocator.Current.GetInstance<ISolrOperations<Document>>();
ISolrQueryResults<Document> results = solr.Query("mainquery", new QueryOptions {
    FilterQueries = new[] {
        new LocalParams {{"tag", "dt"}} + Query.Field("doctype").Is("pdf")
    Facet = new FacetParameters {
        Queries = new[] {
            new SolrFacetFieldQuery(new LocalParams {{"ex", "dt"}} + "doctype")

We build object models like this one because they're programmable, objects and methods can be programmatically combined to build (or compose) our intention. Like Hibernate's Criteria API.

Opposed to this is the string, and most of the time we hate it because it's opaque, it doesn't have any syntactical meaning within our object-oriented code. It has no programmability, no composability. We use very generic classes to build strings, like StringBuilders or StringWriters, which don't convey any syntactical information about what we're actually doing. If we need to extract information from a string, we have to write a parser, which is not a trivial task. But the string also has its advantages: it's naturally serializable (or should I say already serialized), it can be more readable and more concise. And those are some of the reasons why Hibernate also provides the HQL API. You might be thinking that this dichotomy of objects and strings is really a matter of serialization and deserialization, but I'm talking about human-readable strings here, whereas a serialized format is frequently for machine consumption only.

So if we already know what the query string is, how can we simplify the chunk of code above? Thanks to IoC, we can easily tap into some of SolrNet's "internal" components without worrying about what dependencies they need:

Func<string, string, KeyValuePair<string, string>> kv = (k, v) => new KeyValuePair<string, string>(k, v);
var connection = ServiceLocator.Current.GetInstance<ISolrConnection>();
var xml = connection.Get("/select", new[] {
    kv("q", "mainquery"),
    kv("fq", "status:public"),
    kv("fq", "{!tag=dt}doctype:pdf"),
    kv("facet", "on"),
    kv("facet.field", "{!ex=dt}doctype"),
var parser = ServiceLocator.Current.GetInstance<ISolrQueryResultParser<Document>>();
ISolrQueryResults<Document> results = parser.Parse(xml);

ISolrConnection is just a wrapper over the HTTP request, we give it the querystring parameters and get Solr's XML response, then we feed the response to the parser component and voilà, we have our results.

And since it's just a regular HTTP request, we can go even lower:

using (var web = new WebClient()) {
    var xml = web.DownloadString("http://localhost:9983/solr/select/?q=mainquery&fq=status%3Apublic&fq=%7B!tag%3Ddt%7Ddoctype%3Apdf&facet=on&facet.field=%7B!ex%3Ddt%7Ddoctype");
    var parser = ServiceLocator.Current.GetInstance<ISolrQueryResultParser<Document>>();
    ISolrQueryResults<Document> results = parser.Parse(xml);

I'll leave it to you to decide which one to use. Like the choice between HQL and Criteria, sometimes you might prefer one over the other depending on the context. Just keep in mind that these components' interfaces are not as stable as the "really public" documented interfaces, they might have breaking changes more often.

Thursday, March 4, 2010

Stitching git histories

We finally finished migrating the Castle subversion repository to git. When starting the migration we decided that each project under the Castle umbrella would keep all of its history, which meant including the history from when the projects weren't separate and stand-alone but a single humongous project. This was a problem, as git-svn couldn't follow the project split.

I first asked on stackoverflow about this, but didn't get any real solutions. So after a few failed experiments I settled on using grafts and filter-branch. Here's the guide I wrote to migrate each project, I think it could be of help for someone in a similar situation.

I already had run basic git-svn migrations of everything so I'll just skip that step.

First, clone the original-history project from the read-only URL (to prevent accidentally pushing to it)

$ git clone git://
$ cd castle

Add the recent-history project as a remote (with the private read-write URL) and fetch it:

$ git remote add recent
$ git fetch recent

Launch gitk to see both trees:

$ gitk --all

Press F2 and select remotes/recent/master

Both histories are unrelated!

Take note of the SHA1 of the first commit in the recent-history (in this case, the one that has the description "Creating Facilites new folders and setting up the structure". The SHA1 of this commit in this case is 1ad7a4e10b711d1a58f7ac610078dcdf39b36d08

Search in gitk the exact commit in the original-history where the project was moved to its own repository. The first commit in recent-history has the date 2009-10-20 07:30:08 so it has to be around that time.

Found it! Take note of the SHA1: 3526f1a76f6ee2fb23cb2b402201bab1fc5a5b28

Now we're going to build the graft point. Create a .git/info/grafts file with the SHA1s we wrote down:

1ad7a4e10b711d1a58f7ac610078dcdf39b36d08 3526f1a76f6ee2fb23cb2b402201bab1fc5a5b28

Note that the format is <child SHA1> <parent SHA1>
Restart gitk, check that both histories are now related:

Now let's make this permanent with git-filter-branch. First we locate all branches and tags in recent-history. In this case there are two branches: master and svn, and no tags. Create local branches and tags for each of these:

$ git branch rmaster recent/master
$ git branch rsvn recent/svn

Now we run filter-branch for these heads: </P? $ git filter-branch -- 3526f1a76f6ee2fb23cb2b402201bab1fc5a5b28..rmaster 3526f1a76f6ee2fb23cb2b402201bab1fc5a5b28..rsvn

If it complains about a dirty working copy when running filter-branch, reset and retry.

Refresh gitk, check that everything's OK:

Remove the graft and the original heads:

$ rm -rf .git/info/grafts .git/refs/original

Check gitk again, if everything's OK relocate master:

$ git reset --hard rmaster

The temporary branches can be removed now:

$ git branch -d rmaster rsvn

And finally push:

$ git push -f recent

Note that we need to use the -f (force) flag since we rewrote history.

Check on github that everything looks good. Hmm, there's an outdated svn branch, let's remove it:

$ git push recent :svn

On github, check that the committers are correctly mapped, each commit should be linked to the profile of its author.

Now add the build scripts as a submodule:

$ git submodule add git:// buildscripts

Commit and push. That's it.

Actually, after all of this we decided to avoid submodules and instead copy the build scripts and build tools to make forking easier for everyone.

Also, this guide wasn't applied verbatim for all projects. Some projects were merged into other projects, so these "destination" projects required multiple graft points to merge the other projects' histories.
